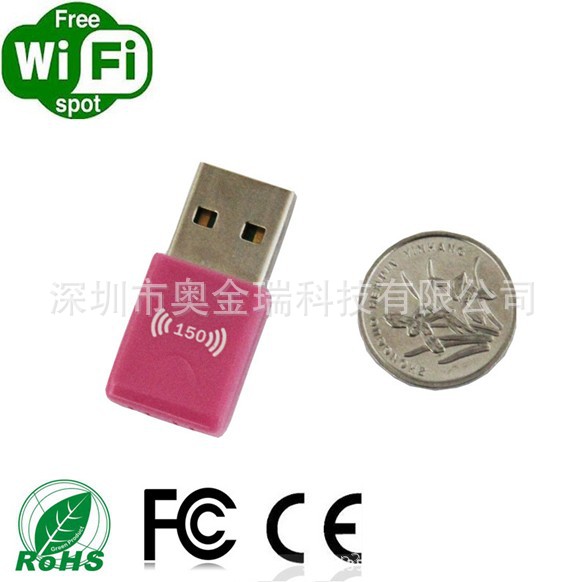

无线网络电视_机顶盒DVB_电脑等专用USB迷你无线网卡150MBPS

  • 价格:16.90元
  • 起订量:500
代三霞
联系方式:13612907257
『深圳市奥金瑞科技有限公司1688』进入公司网站

(来电时请说是从厂家888看到我的)

产品详情
  • 品牌/型号:奥金瑞/GWF-3S01
  • 品牌:奥金瑞
  • 型号:GWF-3S01
  • 网络类型:wifi无线传输
  • 接口类型:USB
  • 最高下行速率:150MBPS
  • 最高上行速率:150mbps
  • 频率范围:2.4G
  • 操作系统:WIN/LINUX/MAX

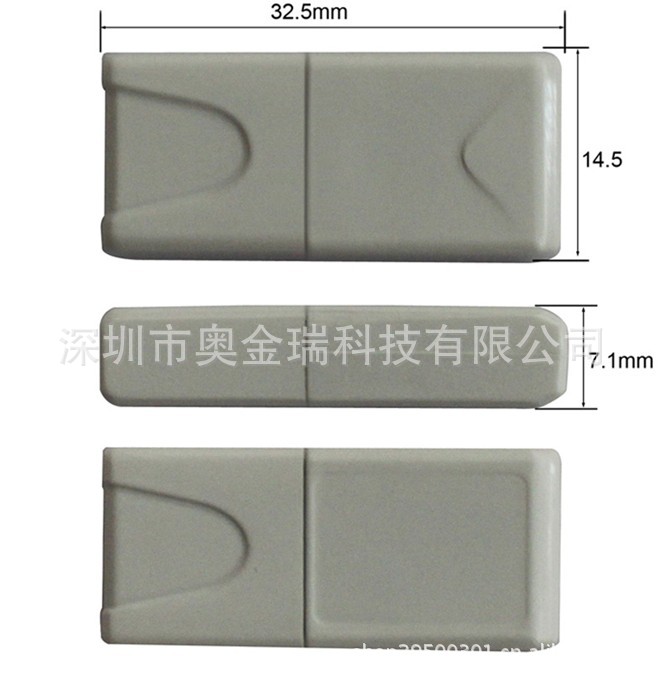

  • 尺寸:32*14.2*7.3MM
  • 网络属性:用于无线数据的传播应用
  • 厂家:奥金瑞
'

网络类型:wifi接口类型:USB无线标准:IEEE 802.11g,IEEE 802.11b,IEEE 802.11n
支持协议:802.11B/G/N覆盖范围:500米型号:GWF-3S01
工作频段:2.4GHZ品牌:奥金瑞传输速率:150M







S01-12

S01-36

S01-33

S01-1

QQ截图20130522181952

undefined

undefined

undefined

undefined

undefined





























35

34

36


超小 USB无线网卡(150M)



 无线标准 IEEE 802.11 b/g/n






传输速度 11/54//135/150Mbps


 1x2dBi 内置

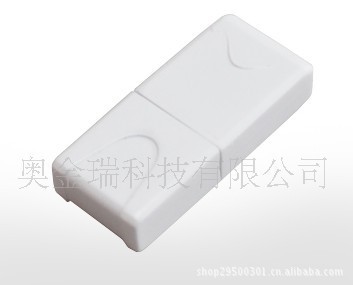

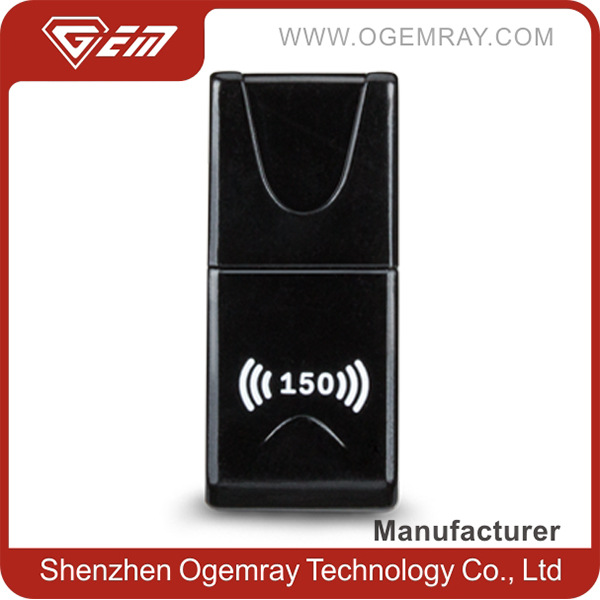

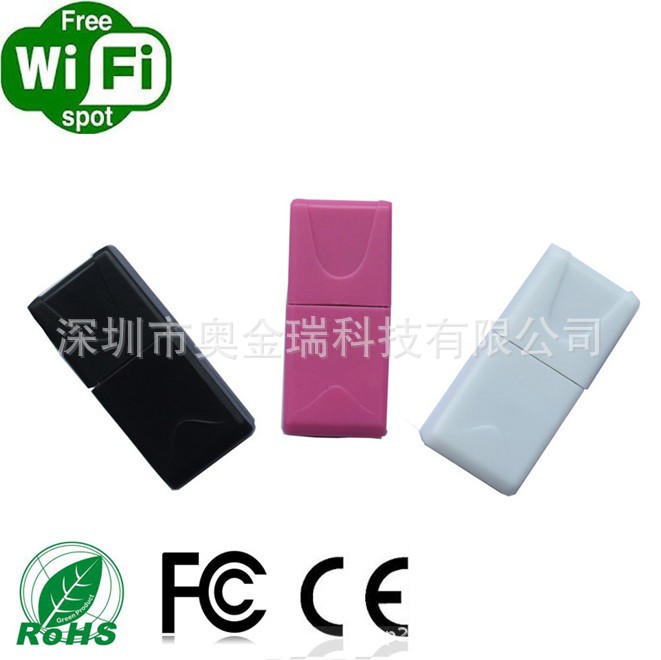

公司产品有多种颜色:白色、黑色及粉色等




无线室内外无阻隔有效距离 (100/300Meters)


传输强度 18dBm


传输频率 2.4 - 2.485GHz


Network Configuration Ad-Hoc (Peer-to-Peer), Infrastructure







USB Super Mini Wireless-N coming out soon

Standards IEEE 802.11b/g/n
Data Transfer Rates 11/54//135/150Mbps
Antenna Type 1x2dBi on board Antennas
Wireless Range Indoor/Outdoor(100/300Meters)
Transmit Power 18dBm
Frequency Range 2.4 - 2.485GHz
Network Configuration Ad-Hoc (Peer-to-Peer), Infrastructure

USB 2.0 Adapter allows you to connect your laptop or desktop to any Wireless-N networks in your home or office. The Wireless-N (802.11n) USB 2.0 Adapter is great for those who want to upgrade older computers to be able to access the internet over a Wireless-N network.

At 5 times faster than traditional Wireless-G (802.11b) networks, Wireless-N networks allow for high speed data transfers, online gaming, and lightning fast downloads. The Wireless-N USB 2.0 Adapter gives you access to all the high-speed features of Wireless-N networks on older and newer computers. Its simple and easy setup means you\'ll be surfing the internet, downloading movies, and e-mail in no time.




Features
  • MIMO technology improves data throughput and range over existing 802.11b/g products
  • Add high-speed Wireless-N (draft 802.11n) Internet access to any USB enabled computer
  • Download music & movies, surf the internet and e-mail up to 5 times faster than previous generation wireless networks (Wireless 802.11g)
  • Offers greater coverage than Wireless-G networks for internet access throughout your home or office
  • Works with older Wireless-G and Wireless-B networks
  • WiFi Protected Setup (WPS) simplifies setup and operation
  • Operating distance of up to 300 feet indoor, and up to 900 feet in open space
  • Data transfer rate of up to 150Mbps (downlink) and 150Mbps (uplink)
  • Supports USB 2.0 interface, backward compatible to USB 1.1 and 1.2
  • Enhanced WEP and WPA wireless security for protected Internet access
  • 64-bit / 128-bit WEP (Wired Equivalent Privacy), TKIP, AES 2.400GHz ISM
  • Frequency Band Modulation Method: QPSK / BPSK / 16-QAM / 64-QAM
  • Supports Ad Hoc and Infrastructure modes
  • Supports IEEE 802.11e standard




Specifications
Wireless StandardsIEEE 802.11n (draft) IEEE 802.11g IEEE 802.11b
Host InterfaceHigh speed USB2.0/1.1 interface
Data Rate802.11n: up to 150Mbps (downlink) and 150Mbps (uplink) 802.11g: 54 / 48 / 36 / 24 / 18/ 12 / 9 / 6 Mbps auto fallback 802.11b: 11 / 5.5 / 2 / 1 Mbps auto fallback
Frequency Band2.4GHz ISM (Industrial Scientific Medical) Band
ChipsetRealtek
RF Frequency2412 ~ 2462 MHz (North America) 2412 ~ 2472 MHz (Europe) 2412 ~ 2484 MHz (Japan)
Radio Channel1 ~ 14 channels (Universal Domain Selection)
Range CoverageUp to 3 times farther range than 802.11g
Antenna typeIntegrated Antenna
RoamingFull mobility and seamless roaming from cell to cell
RF Output Power13 ~17 dBm (Typical)
Modulation11n: BPSK, QPSK, 16QAM, 64QAM with OFDM 11g: BPSK, QPSK, 16QAM, 64QAM, OFDM 11b: DQPSK, DBPSK, DSSS, CCK
Data Security64/128-bit WEP Encryption WPA, WPA-PSK, WPA2, WPA2-PSK. TKIP/AES
NetworkAuto-switch to use 802.11n or 802.11g or 802.11b mode Supports Ad-Hoc, Infrastructure WLAN network Wireless roaming Data rate auto fall-back under noisy environment or longer range distance Site Survey with Profile function
Configuration & ManagementPlug-and-Play setup and installation Management Utility supports 2000 / XP/ Vista
Media Access ControlCSMA/CA with ACK
LED IndicatorLink/Active ( Green )
Operating SystemWindows 2000, XP 32/64-bit, Vista 32/64-bit,
Linux and MAC OS X
EnvironmentOperating Temperature: 0oC to 40oC Storage Temperature: -20oC to 75oC Operating Humidity: 10% ~ 90% (Non Condensing) Storage Humidity: 5% ~ 95% (Non Condensing)
CompliantFCC (USA) CE Mark (Europe) RoHS Compliant Wi-Fi Compliant

Requirements
  • Operating SystemAvailable USB 2.0 port
    • Windows 2000, XP, Vista, Linux and MAC OS X

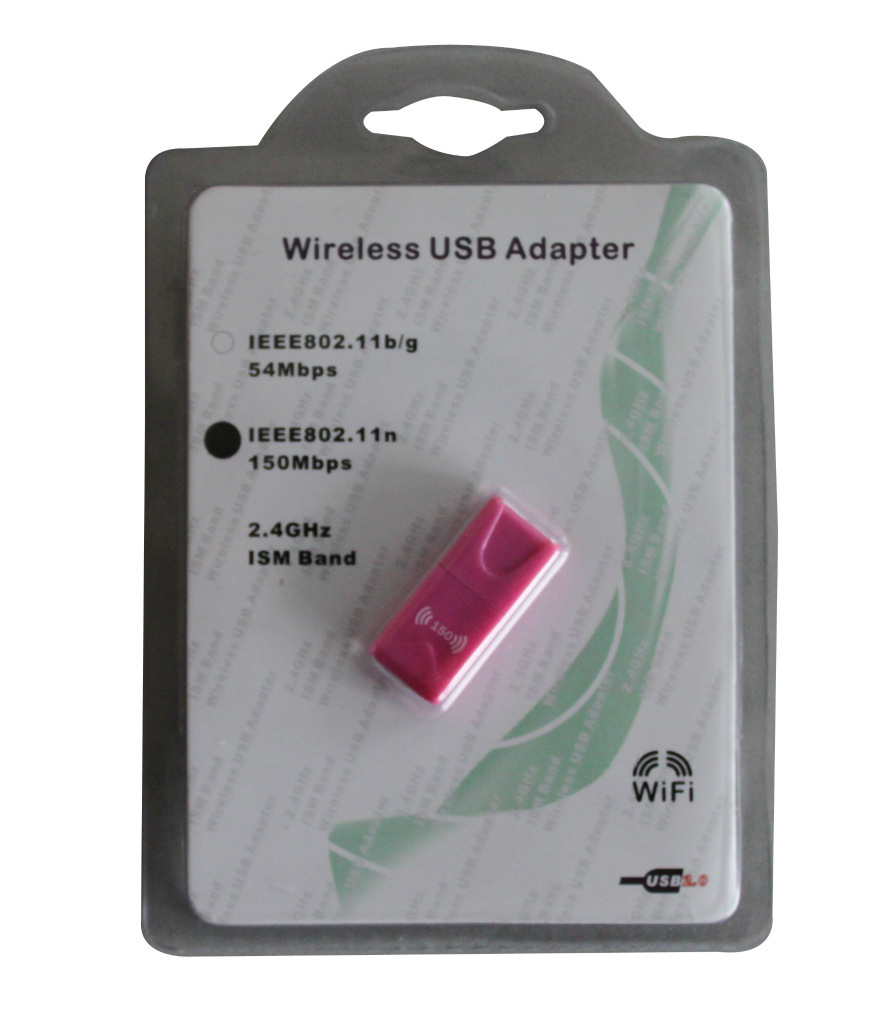

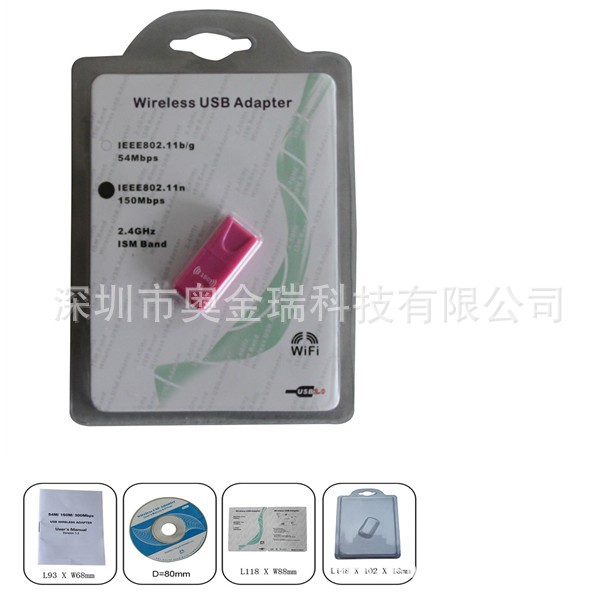

Package Content
  • 1 x Wireless-N USB 2.0 Adapter
  • 1 x Driver CD
  • 1 x Quick Start Guide
